Ecu connector block?

Unread post by Gavin Browne »

I'm making preparations for next season and we have a spare wiring harness for our thundercat powered Ireson. The problem is that the 8 pin connector block that plugs into the ecu has 3 wires pulled out of it. I can't see an easy way to dismantle it to fix the connections. Can anyone point me in the direction of someone who can supply me with a new connector block?
Top
User avatar
steve-e
Site Admin
Posts: 8953
Joined: Wed Jun 14, 2006 6:12 pm
D/P/T/M/S: resting Passenger
Full Name: Steve English
Skype contact: steveenglish.com
Twitter: @steveinmarden
Location: Marden, Kent
Contact:
Contact steve-e

Re: Ecu connector block?

Unread post by steve-e »

Post a photo of it maybe?
IF YOU'VE FORGOTTEN YOUR LOGIN EMAIL ME, WE ARE GOING BACK TO BEING LOGGED IN TO READ.
steve@steveenglish.com subject:login and whatever details you remember
Top
Gavin Browne
Fired Up
Posts: 48
Joined: Mon Oct 20, 2014 10:28 am
D/P/T/M/S: Driver
Full Name: Gavin Browne

Re: Ecu connector block?

Unread post by Gavin Browne »

Thanks Steve, that would be sensible!

Here are 3 pictures of the connector.

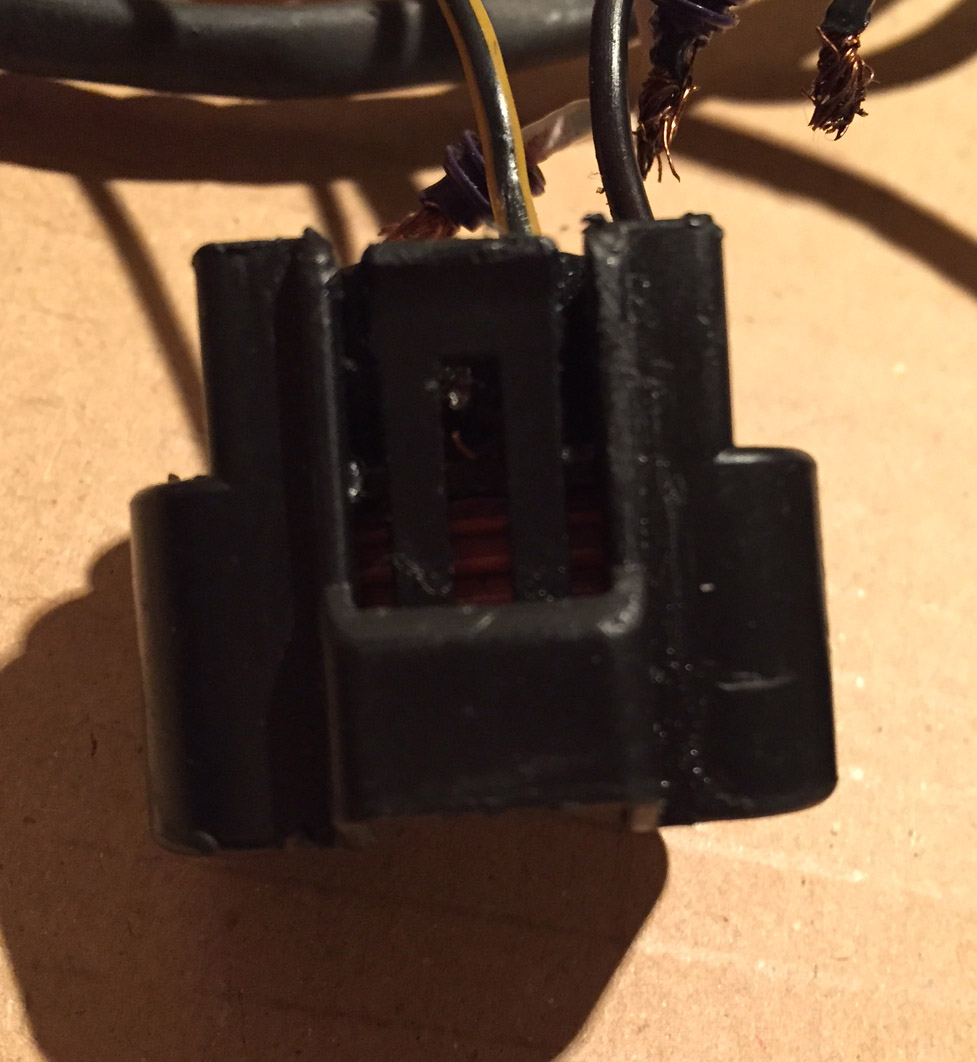

ecu connector pic no1.jpg

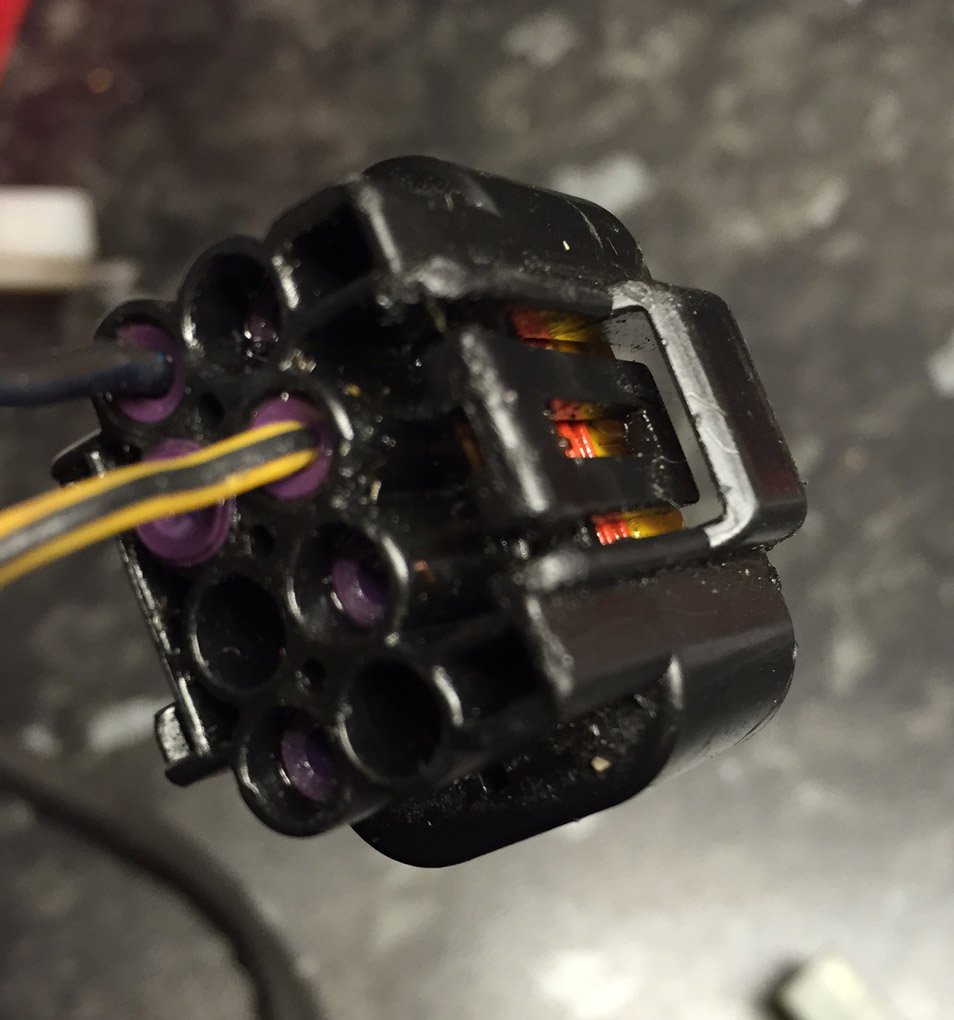

ecu connector pic no2.jpg

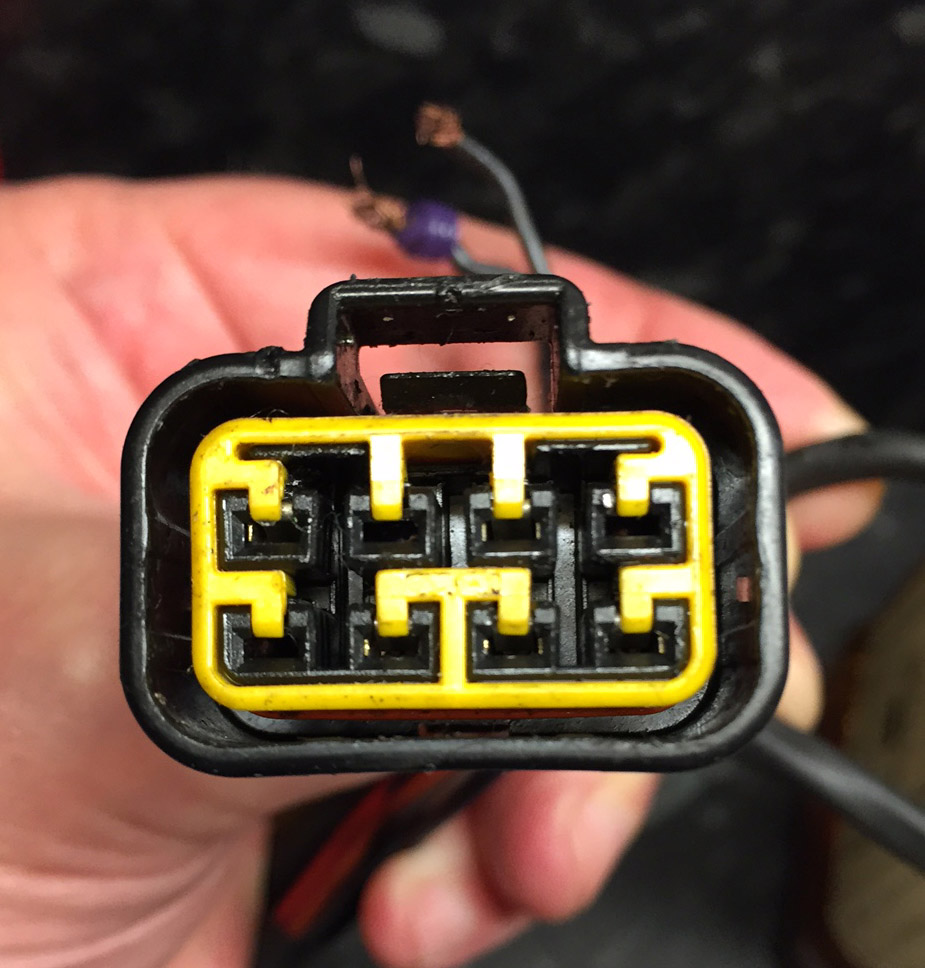

ecu connector pic no3.jpg
Top
teamarc
On the Starting Grid
Posts: 12
Joined: Thu Mar 29, 2012 9:42 pm
D/P/T/M/S: Driver
Full Name: Lee Crawford

Re: Ecu connector block?

Unread post by teamarc »

Is that on the spare harness ? :(
Top
Gavin Browne
Fired Up
Posts: 48
Joined: Mon Oct 20, 2014 10:28 am
D/P/T/M/S: Driver
Full Name: Gavin Browne

Re: Ecu connector block?

Unread post by Gavin Browne »

No the spare harness is working ok and on the bike. This is the main harness that was on the bike initially.
Top
Gavin Browne
Fired Up
Posts: 48
Joined: Mon Oct 20, 2014 10:28 am
D/P/T/M/S: Driver
Full Name: Gavin Browne

Re: Ecu connector block?

Unread post by Gavin Browne »

Unless I can find a supplier that can sell me a new connector block, I suspect the next best thing is to pick up a used thundercat harness and cut the connector block out of it and use that to repair our damaged racing harness.
Top
Gavin Browne
Fired Up
Posts: 48
Joined: Mon Oct 20, 2014 10:28 am
D/P/T/M/S: Driver
Full Name: Gavin Browne

Re: Ecu connector block?

Unread post by Gavin Browne »

Just for the record, in case anyone else has similar problems in the future I think I just found a supplier.

http://kojaycat.co.uk/epages/950000457. ... ts/RFW-8WF
